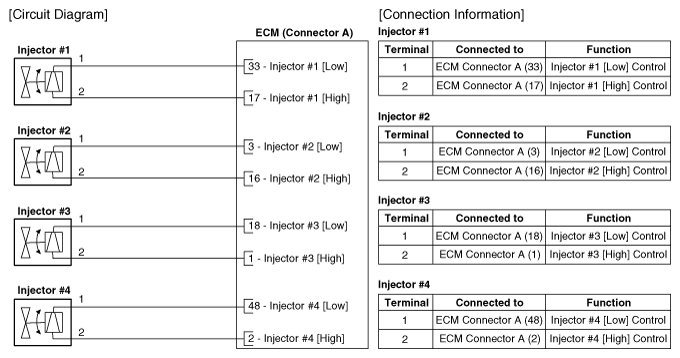

Home › Kia › 2016 › Optima LX 1.6T › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L - Optima (Except HEV) › Injector › Schematic Diagrams › Circuit Diagram › Notes
