Cluster Module Diagnosis - Optima (Except HEV)
›
DTC B1020-55: TPMS Present Error - Coding code error
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

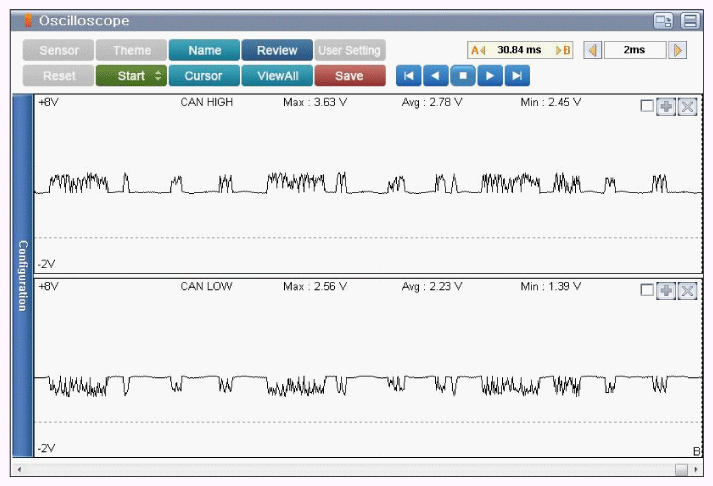

Fig 1: Display - C CAN Low And High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

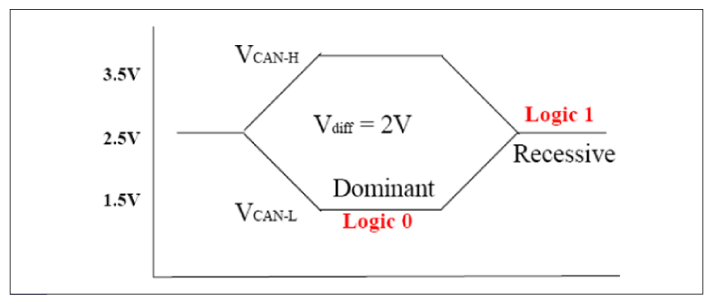

Fig 2: C CAN Bus Voltage Level Graph (High Speed CAN)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
