Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

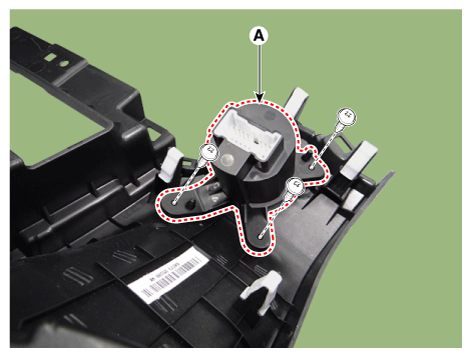

  3. Remove the start/stop button assembly (A) after loosening the screws.
Fig 1: Locating Start/Stop Button Assembly With Screws
G11827832Courtesy of KIA MOTORS AMERICA, INC.
