[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

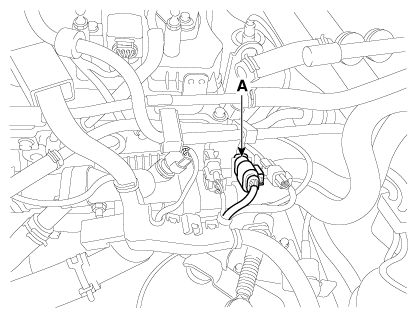

Fig 1: Locating Connector (Bank 1/Sensor 1)
G11826970Courtesy of KIA MOTORS AMERICA, INC.

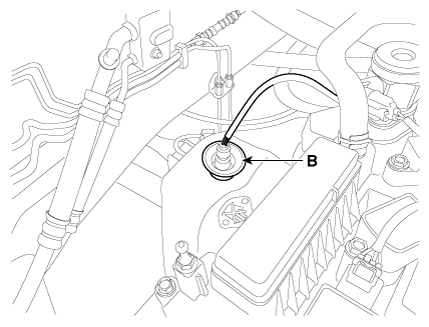

Fig 2: Removing Sensor (Bank 1/Sensor 1)
G11826971Courtesy of KIA MOTORS AMERICA, INC.
