Component Location

WARNING: This page is about a different variant/trim than selected.

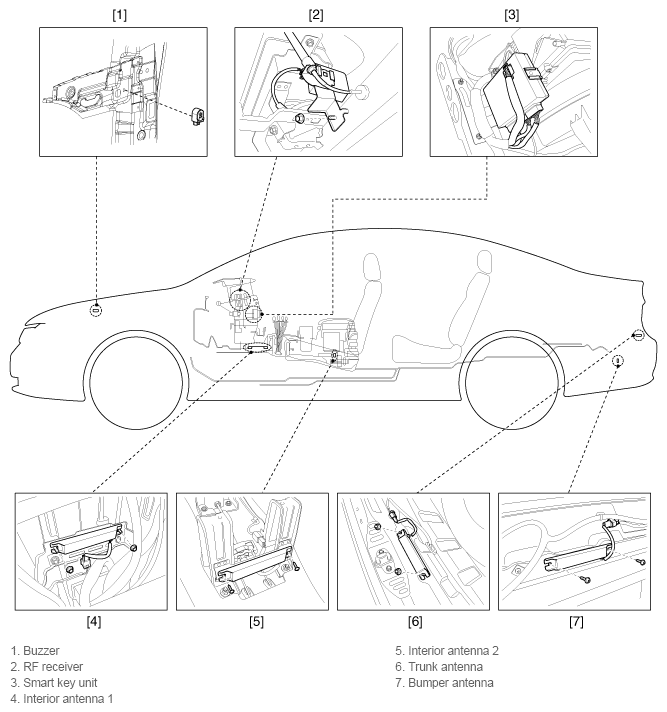

Fig 1: Smart Key Unit Components Location (1 Of 2)
G11817803Courtesy of KIA MOTORS AMERICA, INC.

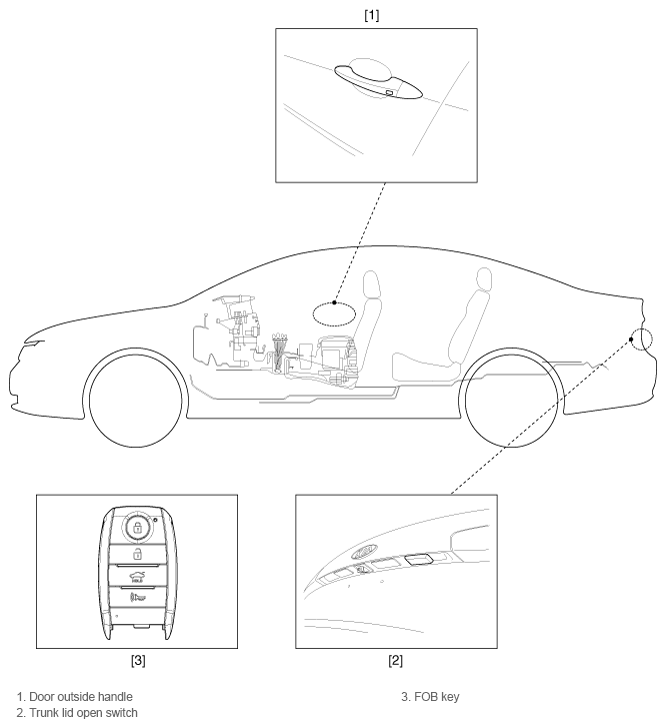

Fig 2: Smart Key Unit Components Location (2 Of 2)
G11817804Courtesy of KIA MOTORS AMERICA, INC.
