Serial Communication Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Serial Communication Line Check".

Fig 1: Screen Display - Serial Communication Line Check Screen
Courtesy of KIA MOTORS AMERICA, INC.
After IGN ON, select the "Receiver Communication Line Check".

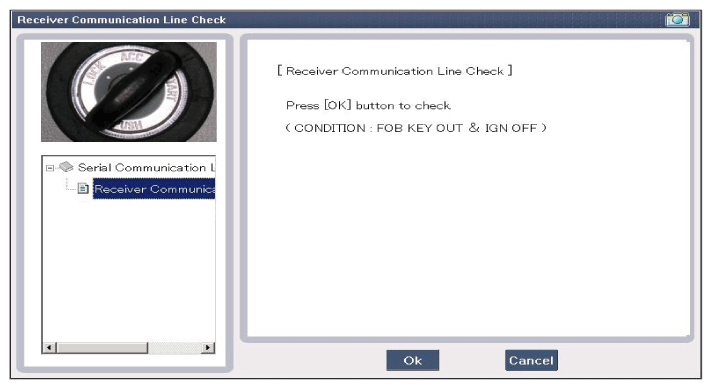

Fig 2: Screen Display - Receiver Communication Line Check Screen
Courtesy of KIA MOTORS AMERICA, INC.
Check the serial communication line with a GDS.
If the smart key runs normal, the communication of smart key unit, exterior receiver and ESCL are normal.
If the smart key runs abnormal, check the following items.
