Automatic Transaxle Control System - 2.4L - Optima (Except HEV)
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

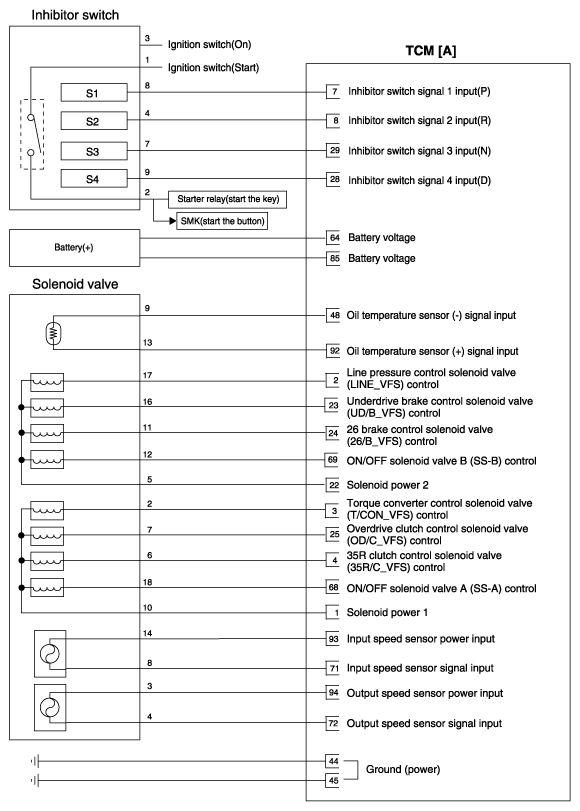

Fig 1: Inhibitor Switch Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Inhibitor Switch Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
