Engine Control System - 2.0L - Optima (Except HEV)
›
E-CVVT motor
›
Description and Operation
›
Operation
Description and Operation: Operation

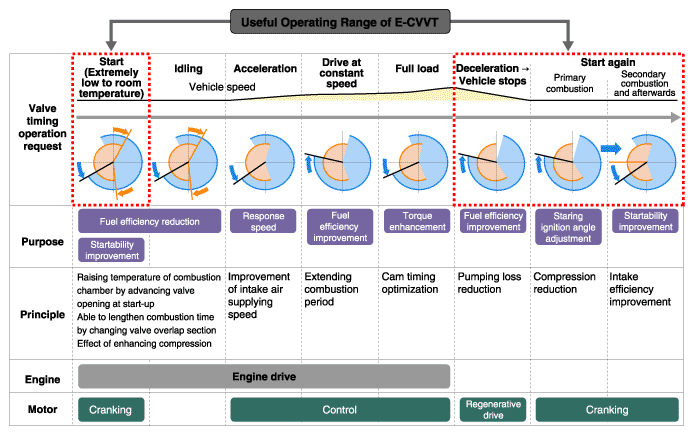

Fig 1: E-CVVT Motor Operation Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
