Repair Procedures: Removal

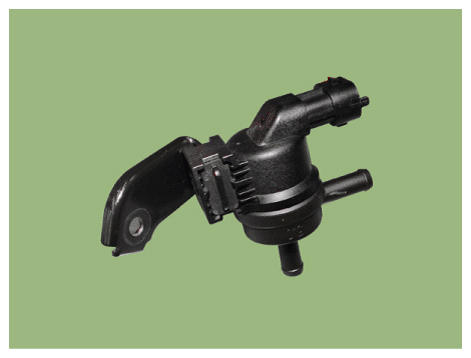

Fig 1: PCSV Connector

Courtesy of KIA MOTORS AMERICA, INC.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the RCV control solenoid valve (B) after loosening the soleonid mounting bolt (A).

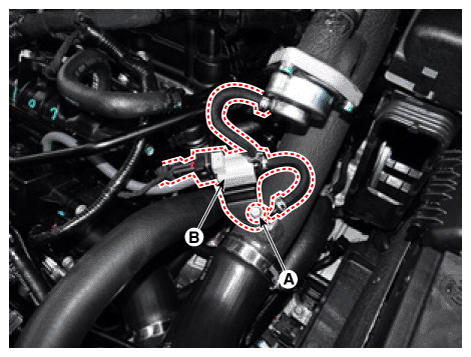

Fig 2: Removing RCV Control Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.
Remove the purge control solenoid valve mounting bolt (A).
Remove the purge control splenoid valve (A) after disconnect the purge control solenoid valve connector (C) and vapor hoses (B).

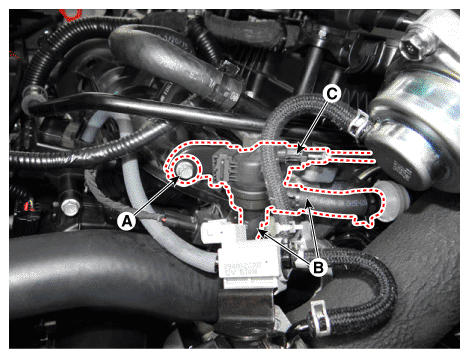

Fig 3: Disconnecting Purge Control Solenoid Valve Connector And Vapor Hoses
