Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the oil temperature sensor connector (A).
  3. Remove the oil temperature sensor.

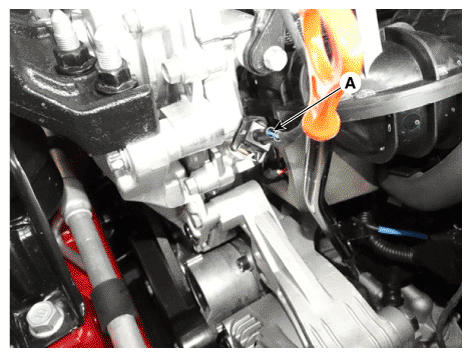

Fig 1: Disconnecting Oil Temperature Sensor Connector
G11826009Courtesy of KIA MOTORS AMERICA, INC.
