Engine Control System - 2.0L - Optima (Except HEV)
›
Components and Components Location
›
Components Location
Components Location

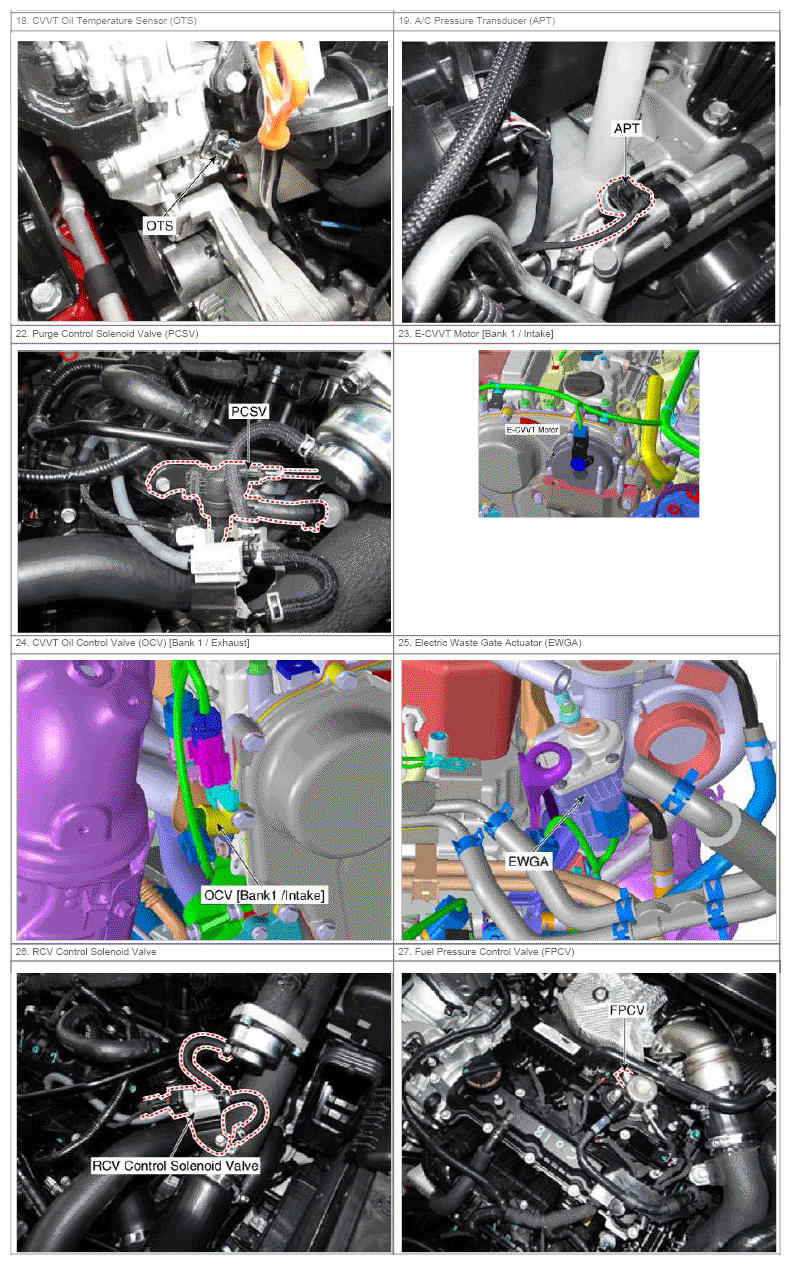

Fig 1: Engine Control System Components (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

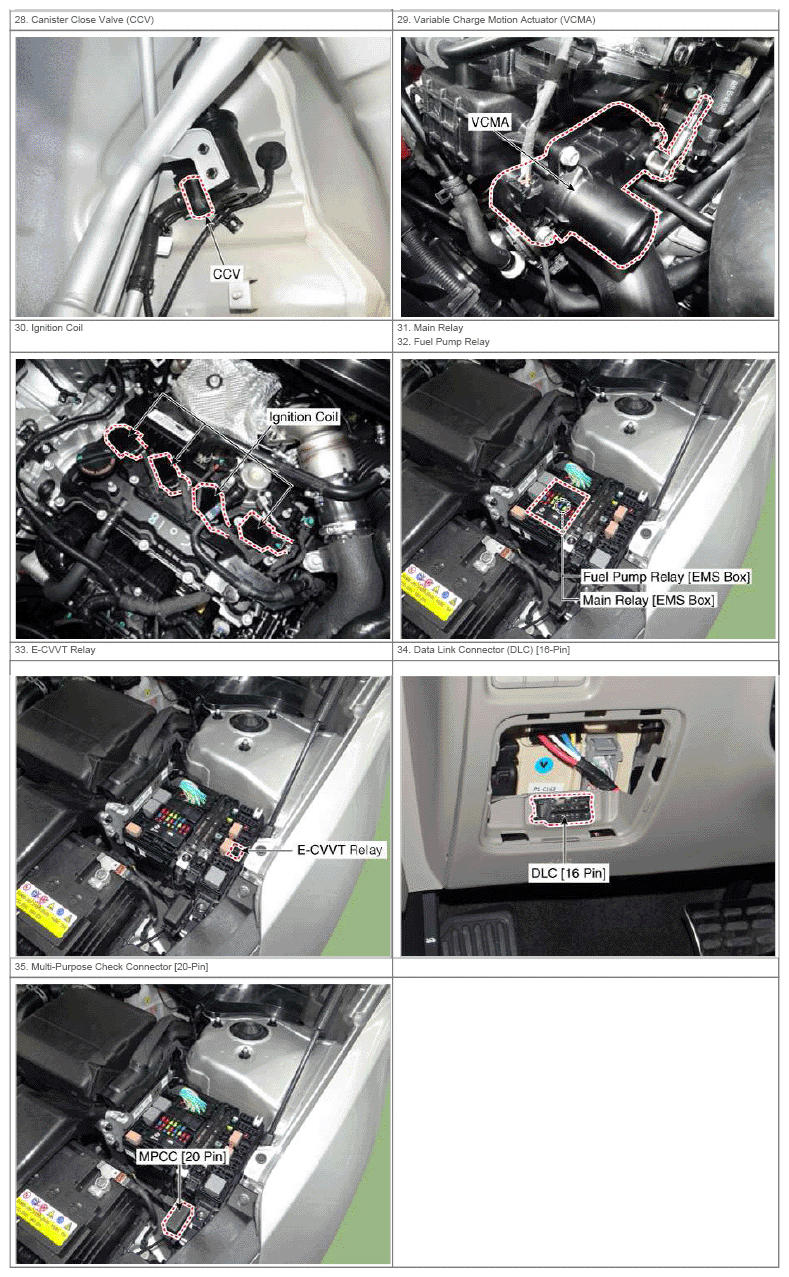

Fig 2: Engine Control System Components (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

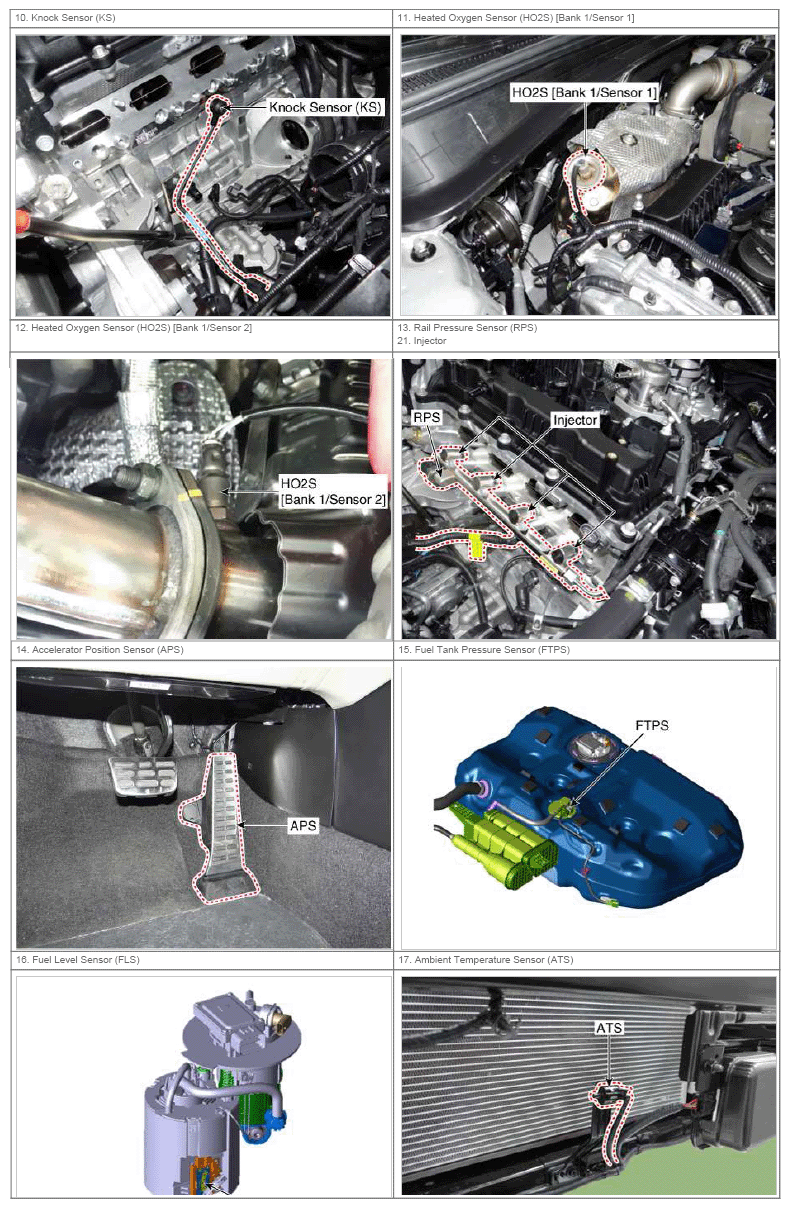

Fig 3: Engine Control System Components (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

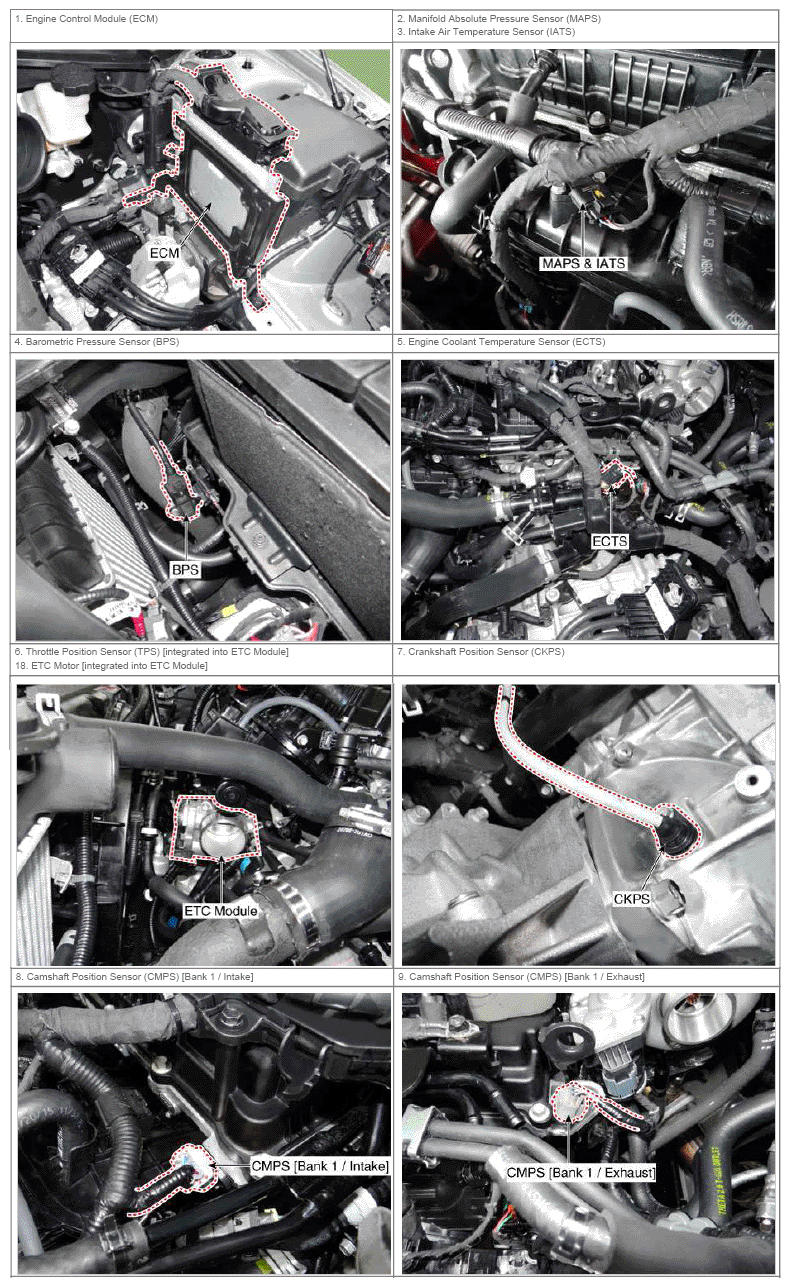

Fig 4: Engine Control System Components (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

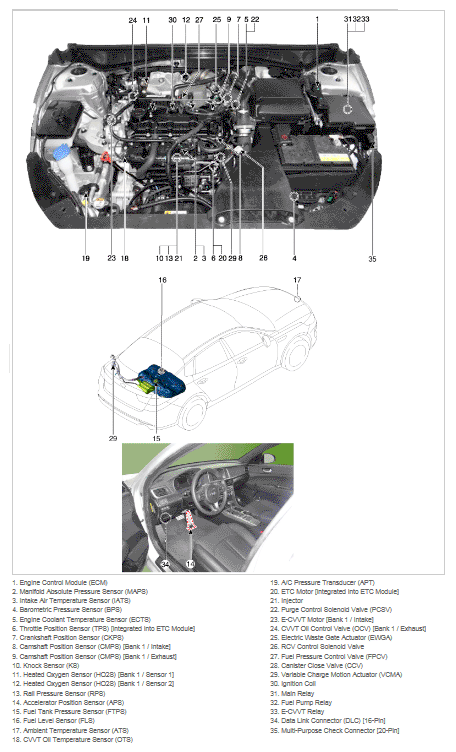

Fig 5: Engine Control System Components (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
