Components and Components Location
›
Components
Components and Components Location: Components

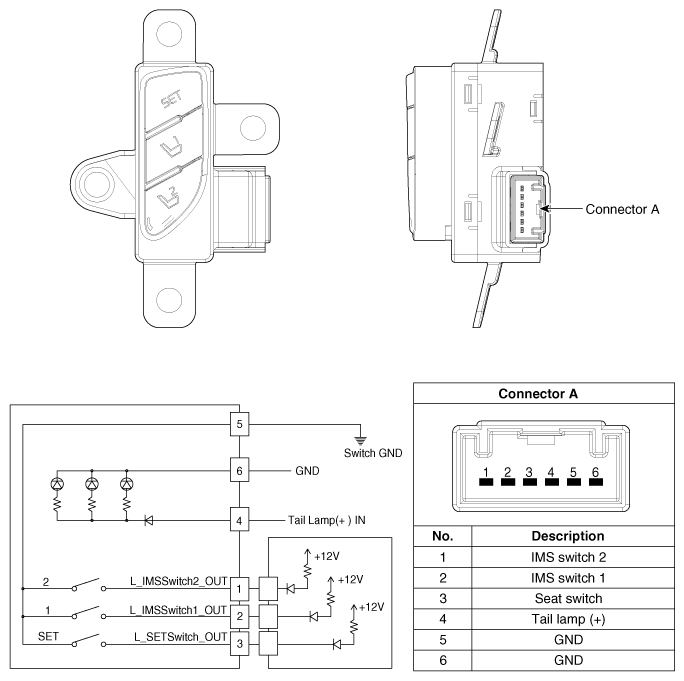

Fig 1: Locating IMS Control Switch Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
