IMS (Integrated Memory System) Module
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

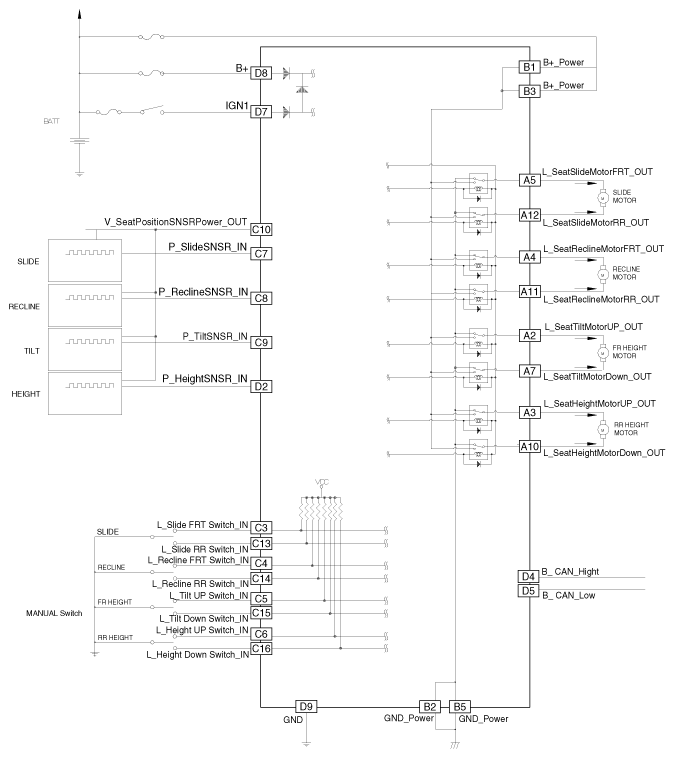

Fig 1: Integrated Memory Schematic Diagrams
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
