Assist Power Window Switch

[Assist Power Window Module (ADM, IMS)]

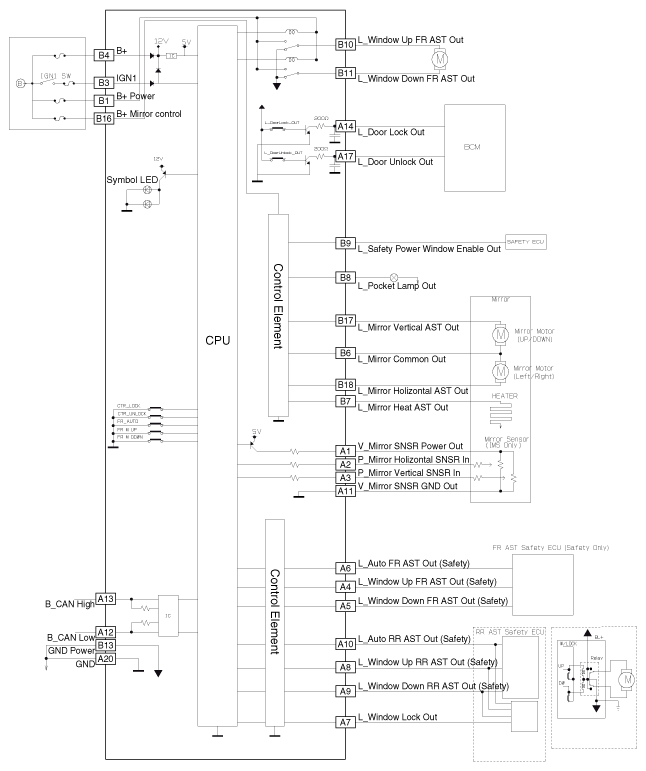

Fig 1: Assist Power Window Module (ADM, IMS) Schematic Diagrams

Courtesy of KIA MOTORS AMERICA, INC.

[Assist Power Window Switch (Non-IMS)]

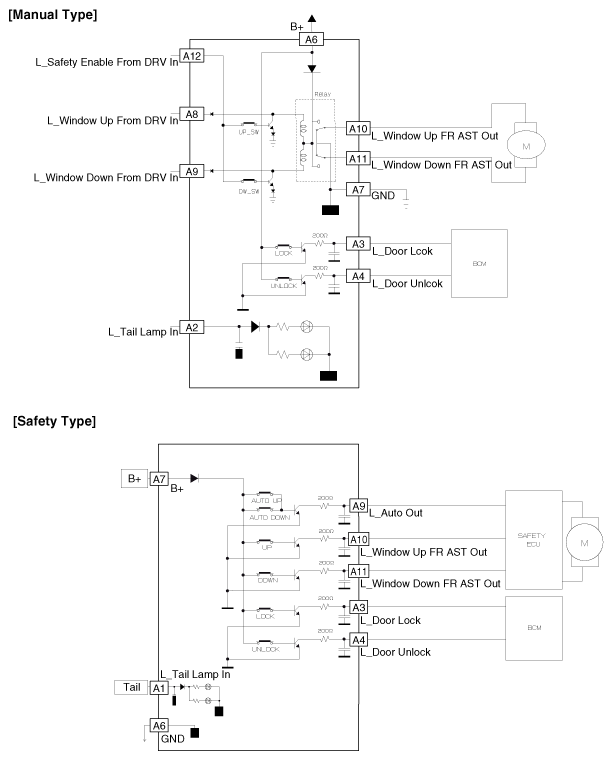

Fig 2: Assist Power Window Switch (Non-IMS) Schematic Diagrams

Courtesy of KIA MOTORS AMERICA, INC.
