Components and Components Location: Components

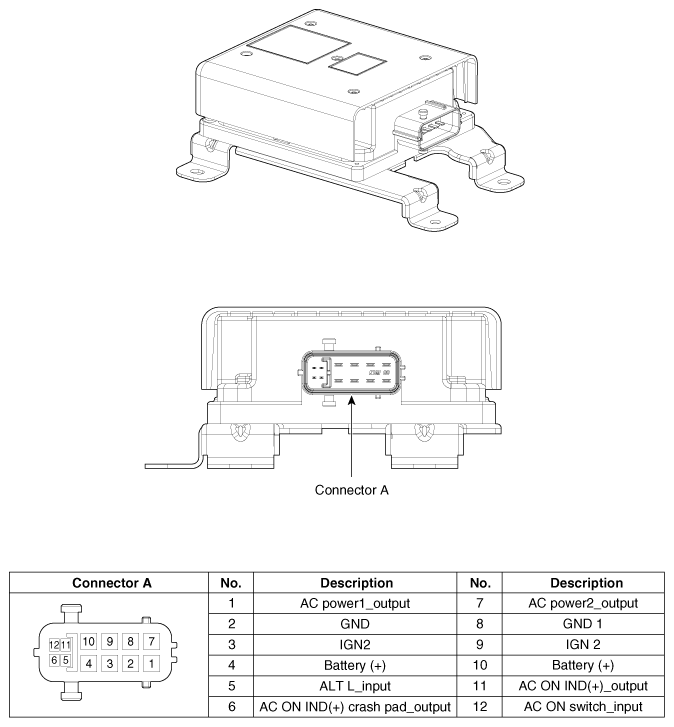

Fig 1: Locating AC Inverter Unit Components
Courtesy of KIA MOTORS AMERICA, INC.
