Components and Components Location: Components

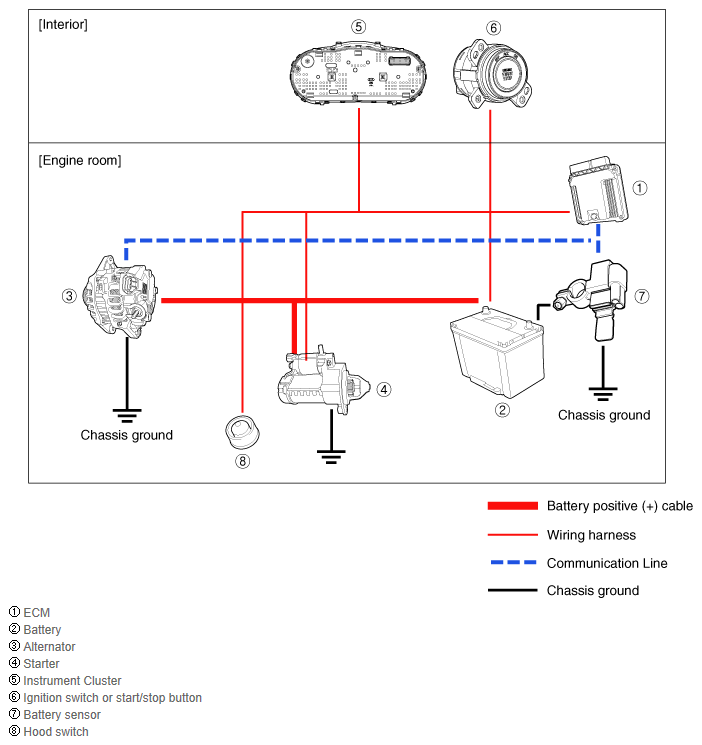

Fig 1: Locating Charging System Component
G11856398Courtesy of KIA MOTORS AMERICA, INC.
