Components and Components Location: Component

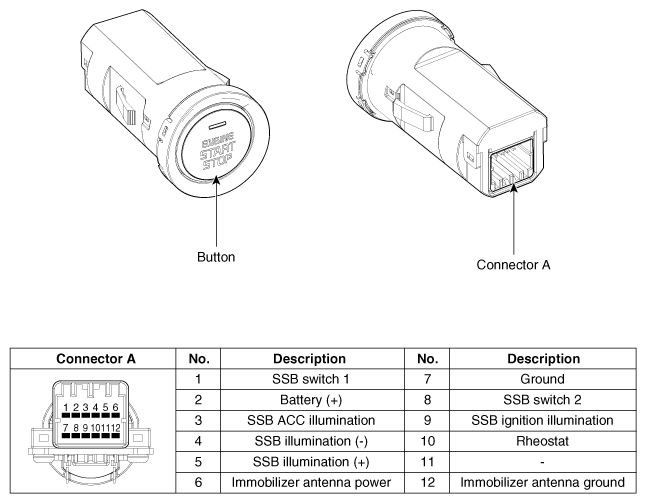

Fig 1: Locating Start/Stop Button Components
G11858571Courtesy of KIA MOTORS AMERICA, INC.
