CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

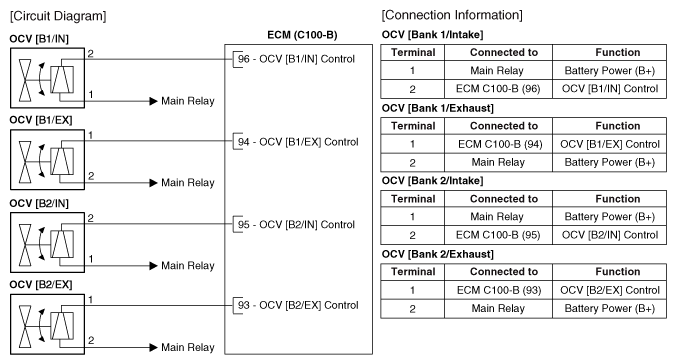

Fig 1: Oil Control Valve And ECM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
