ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

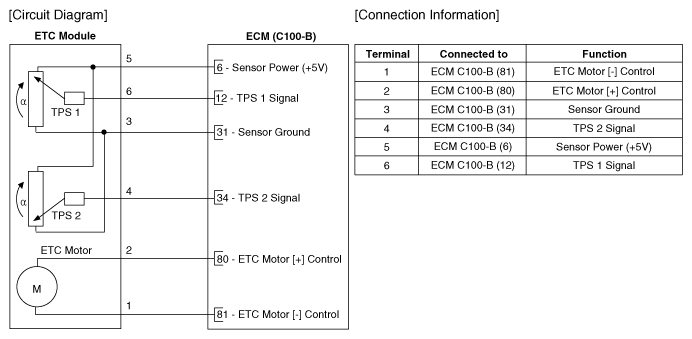

Fig 1: ECM And ETC Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
