Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Heated Oxygen Sensor (HO2S)
›
Troubleshooting
›
Wave Form
Wave Form

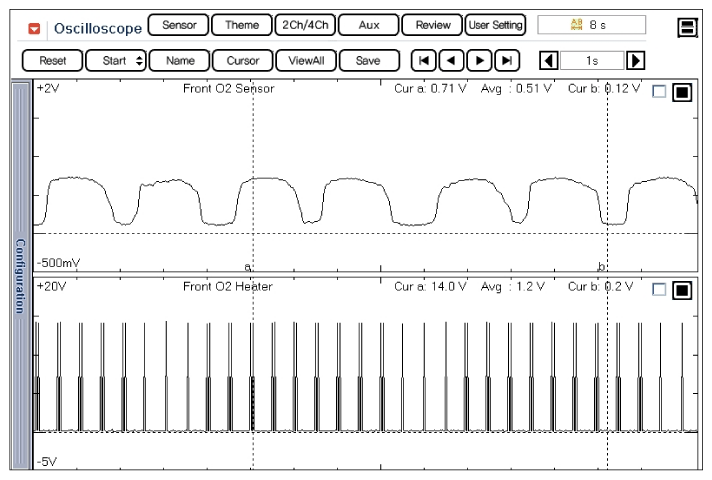

Fig 1: Front O2 Heater Signal Wave Form
Courtesy of KIA MOTORS AMERICA, INC.

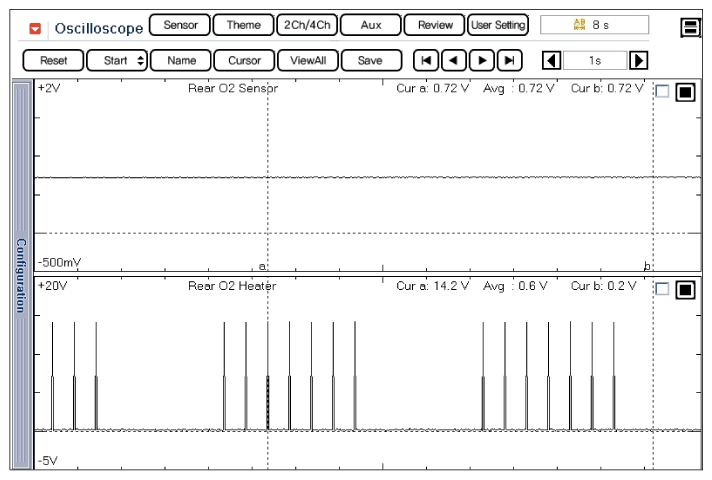

Fig 2: Rear O2 Heater Signal Wave Form
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
