Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

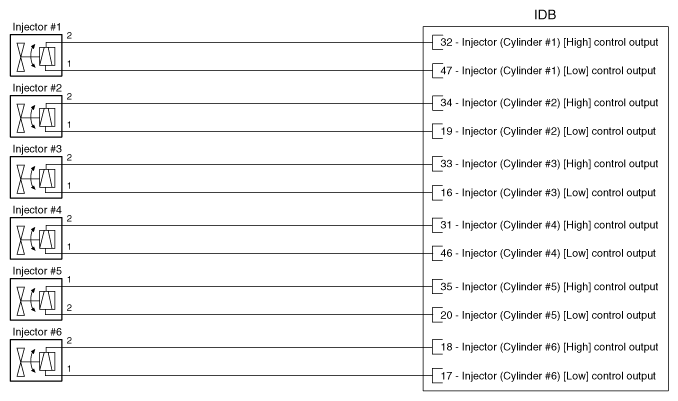

Fig 1: IDB-Injectors Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

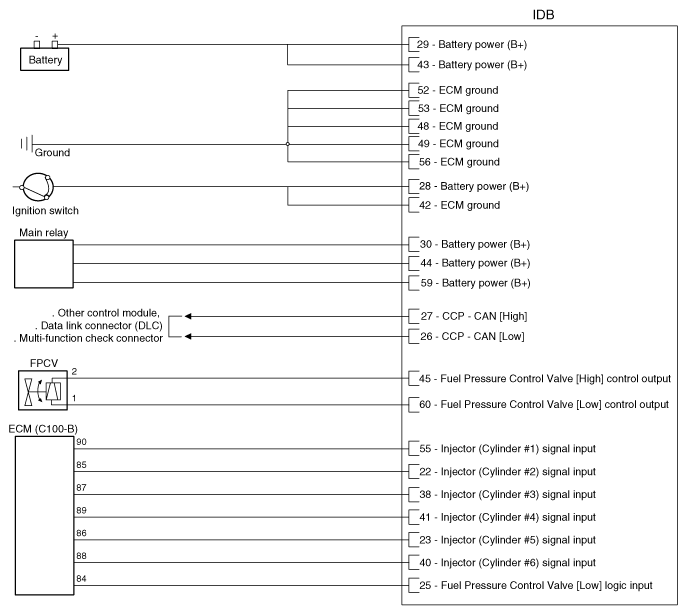

Fig 2: IDB-Battery, Ground And Main Relay Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
