Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

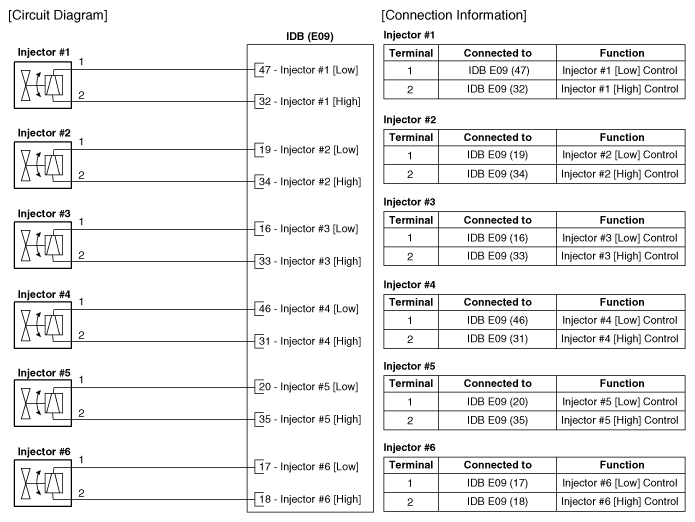

Fig 1: IDB - Injectors Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
