Components and Components Location: Components

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

[Lambda Engine]

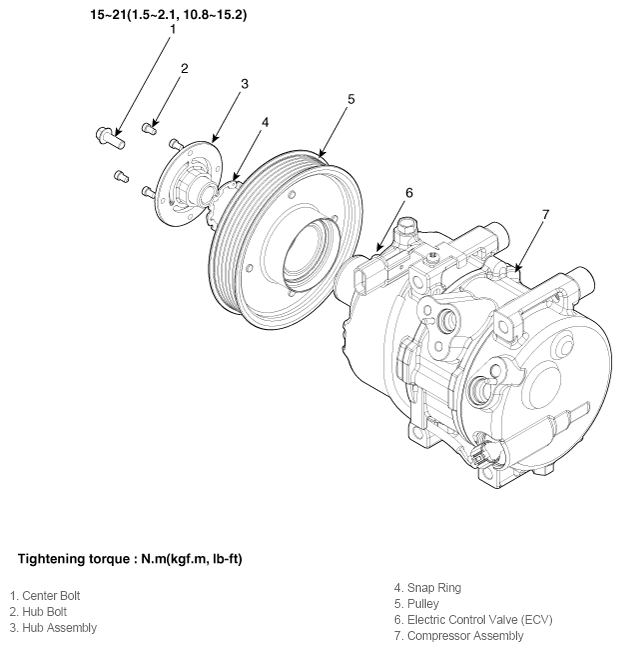

Fig 1: Compressor Components With Torque Specification (Lambda Engine)

Courtesy of KIA MOTORS AMERICA, INC.

[Tau Engine]

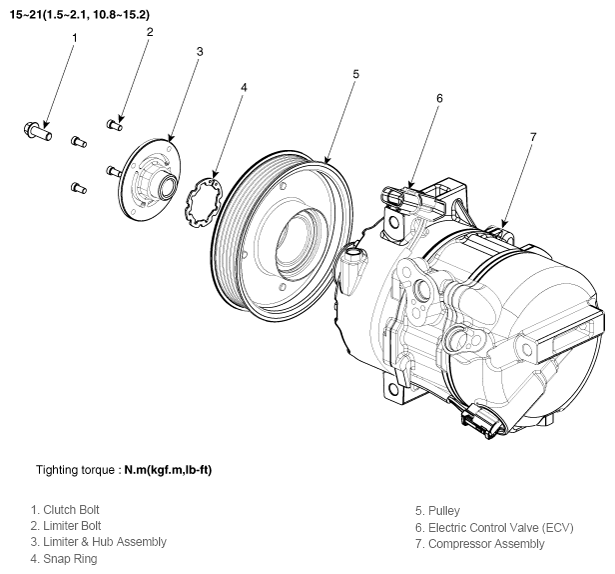

Fig 2: Compressor Components With Torque Specification (Tau Engine)

Courtesy of KIA MOTORS AMERICA, INC.
