Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Check input/output specification of multifunction switch using the GDS. If the specification is abnormal, replace the lamp or wiper switch.
If diagnosis is required on the multifunction switch, select model and "BCM".
Select "Current data" and check the input/output condition of "Multifunction switch".

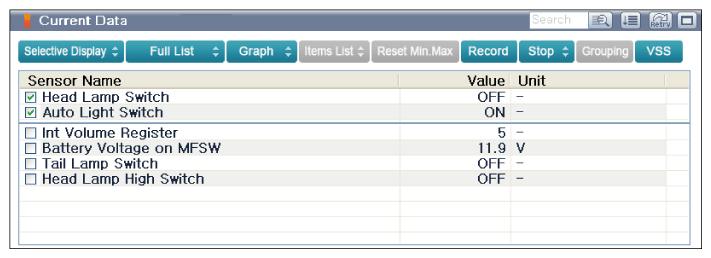

Fig 1: Screen Display - Current Data

Courtesy of KIA MOTORS AMERICA, INC.
