Power Latch Assembly Inspection with GDS
WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
- The BCM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
- To diagnose the Power Trunk Module system function, select the vehicle model, BCM and PTM system.

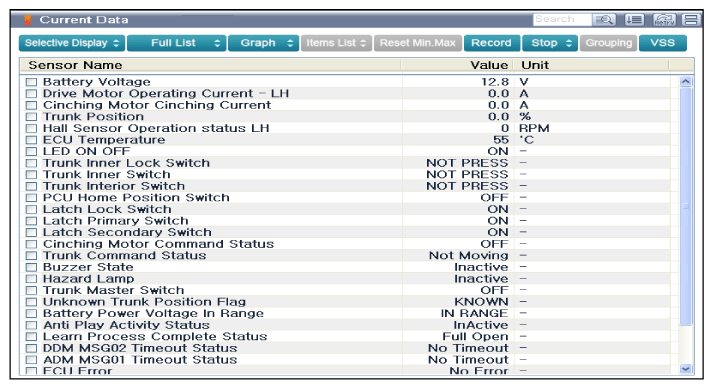

- Select "Current Data", if you want to check current data of PTM system. It provides input/output status of PTM.
