Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

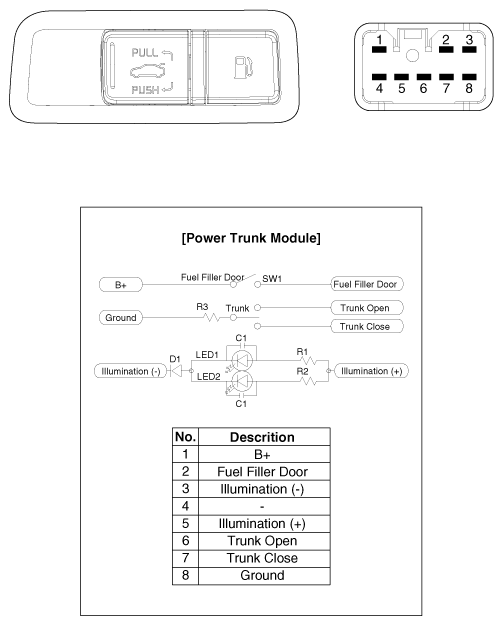

Fig 1: Power Trunk Open Close Switch Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
