Signal Waveform & Data

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

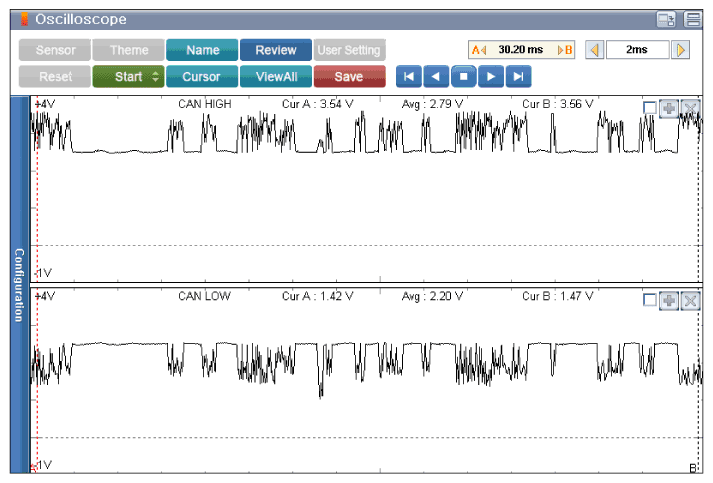

Fig 1: Scantool Display - C_CAN Low & High Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - C_CAN Bus Voltage Level (High Speed CAN)

Courtesy of KIA MOTORS AMERICA, INC.
