Home › Kia › 2016 › Sedona EX › Repair and Diagnosis › Suspension › Front Suspension › Front Axle Assembly › Front Hub Knuckle Tone Wheel › Components and Components Location › Components

Components and Components Location: Components

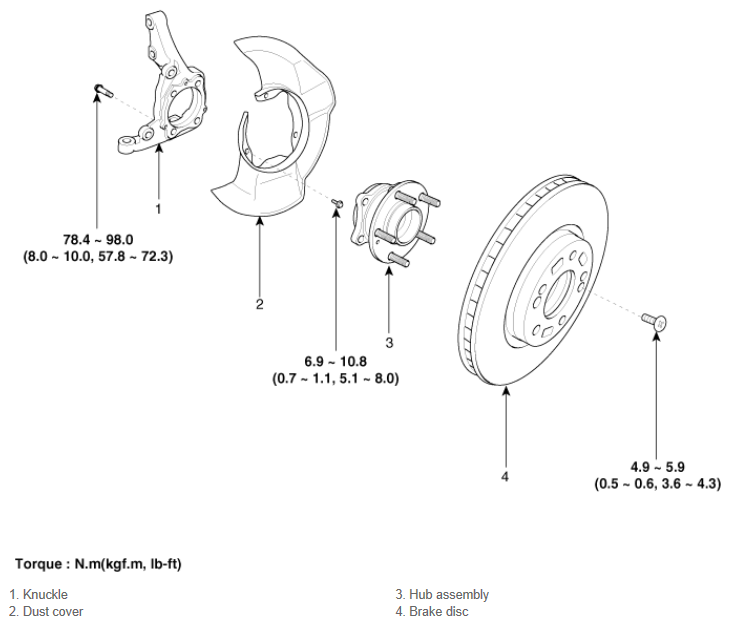

Fig 1: Front Hub Knuckle Tone Wheel Components With Torque Specification
G11857069Courtesy of KIA MOTORS AMERICA, INC.
