Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

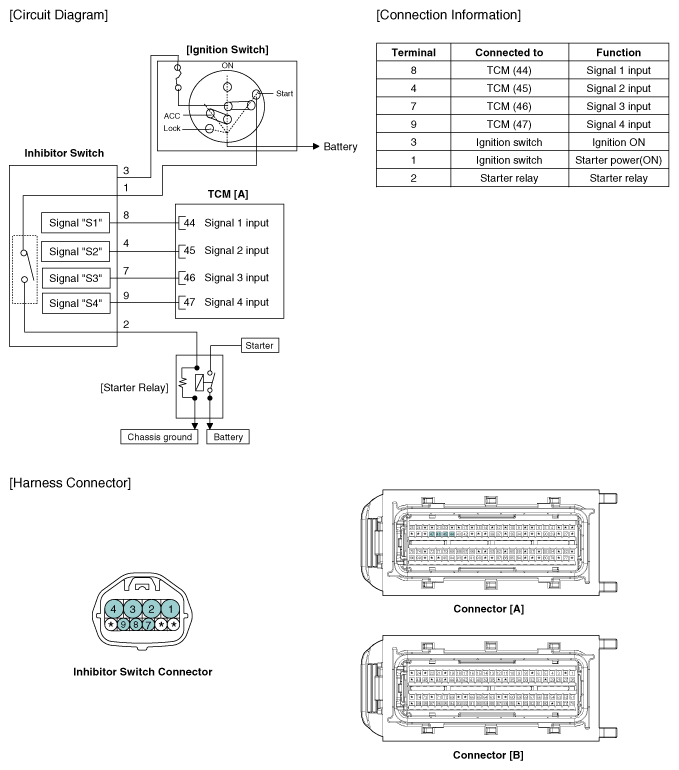

Fig 1: Inhibitor Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
