Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

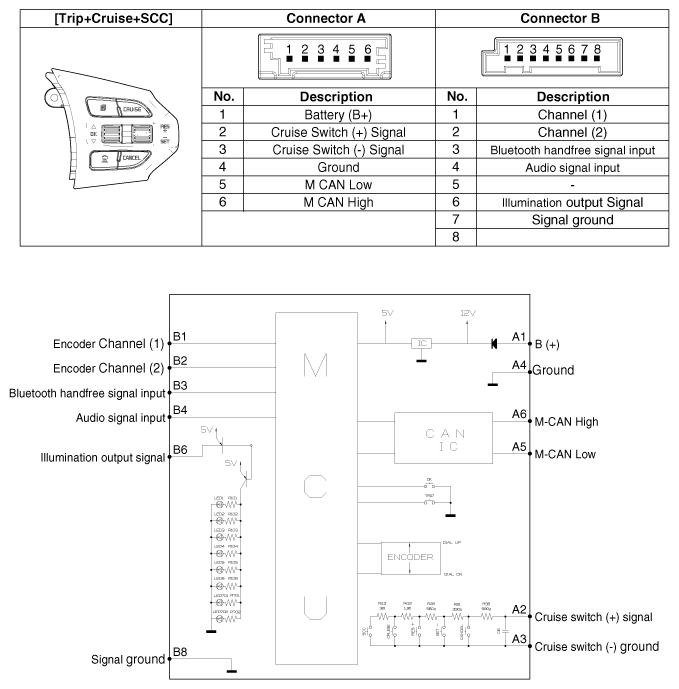

Fig 1: Smart Cruise Control Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
