Diagnosis With GDS

It can quickly diagnose defects of power window by communicating with GDS. KDS can operate actuator forcefully, monitor input/output values and self diagnose.
Select model and "BCM".
Select the "SJB" to check.
Select "Current Data" if you wish to check the current data of power window system. This menu provides input/output status of SJB.

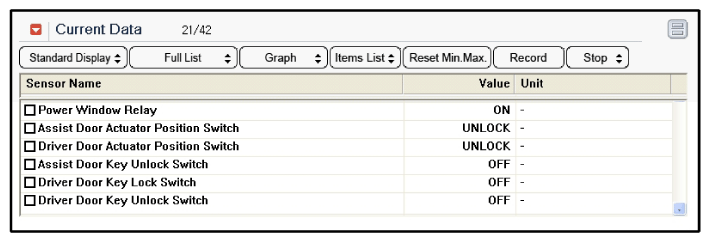

Fig 1: Display - Power Window System Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
If you wish to check the power door lock operation forcefully, select "Actuation Test".

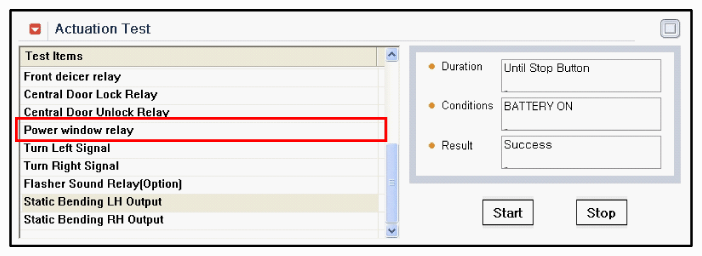

Fig 2: Display - Power Window Relay Actuation Test Screen

Courtesy of KIA MOTORS AMERICA, INC.
