Heated Oxygen Sensor (HO2S)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

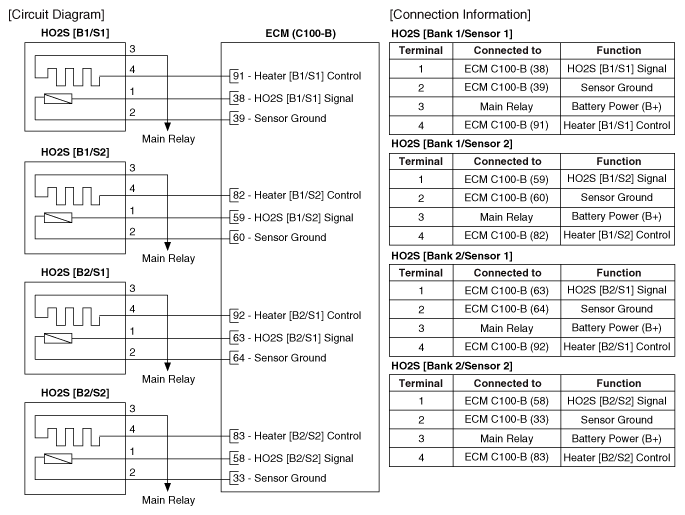

Fig 1: Heated Oxygen Sensor And ECM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
