System Inspection

■ Visual Check

1. Need to inspect visually/physically the following parts:
   • Vacuum line leakage
   • Intake air leak after throttle body
   • Damaged PCSV
   • Damaged ETC
   • Sludged throttle body
2. Have any problems been found?

   YES

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Clear DTC and Test-drive under enable conditions above-mentioned. After the test, If this DTC is set, go to "ETC TEST" procedure. If not, troubleshooting is completed.

■ ETC TEST

1. Connect GDS to Data Link Cable (DLC).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

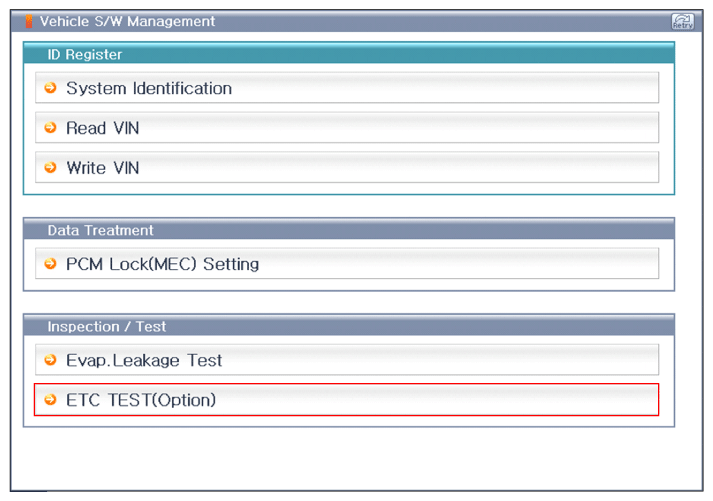

   Fig 1: Scantool Display - Vehicle S/W Management (ETC Test)

   Courtesy of KIA MOTORS AMERICA, INC.

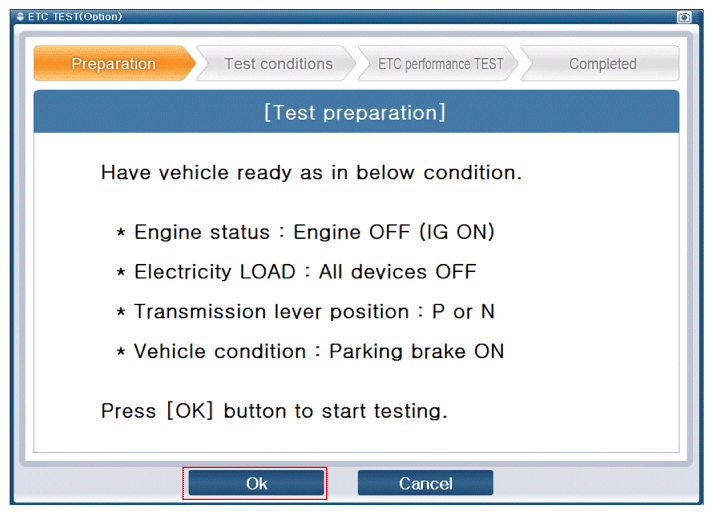

   Fig 2: Scantool Display - ETC Test Preparation

   Courtesy of KIA MOTORS AMERICA, INC.

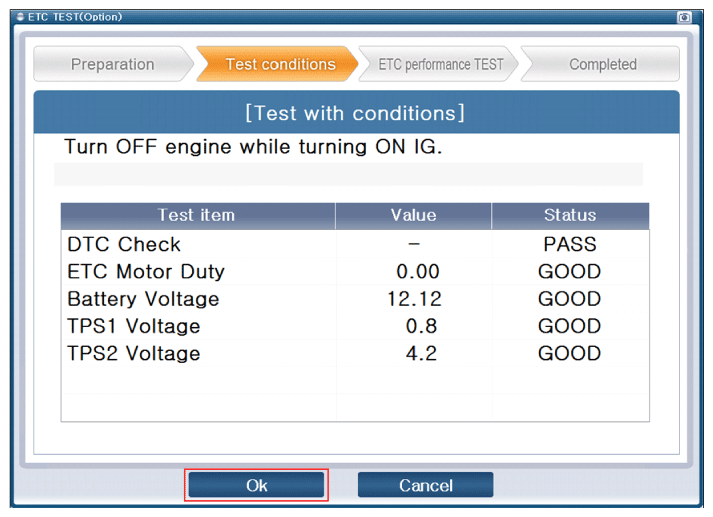

   Fig 3: Scantool Display - ETC Test With Condition

   Courtesy of KIA MOTORS AMERICA, INC.

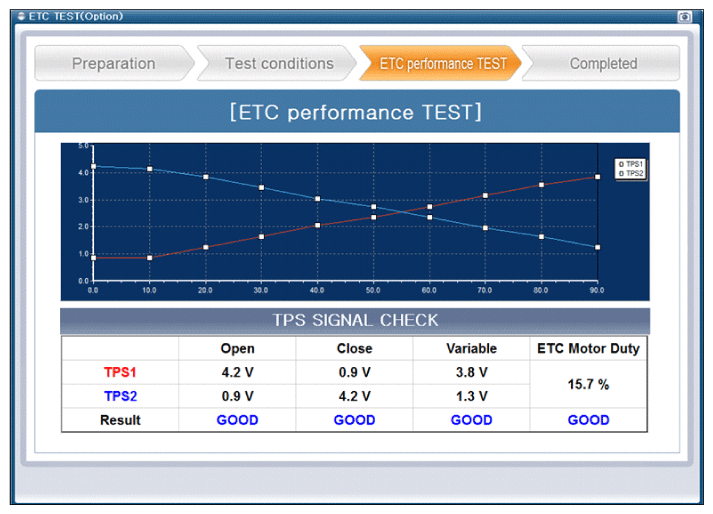

   Fig 4: Scantool Display - ETC Performance Test

   Courtesy of KIA MOTORS AMERICA, INC.

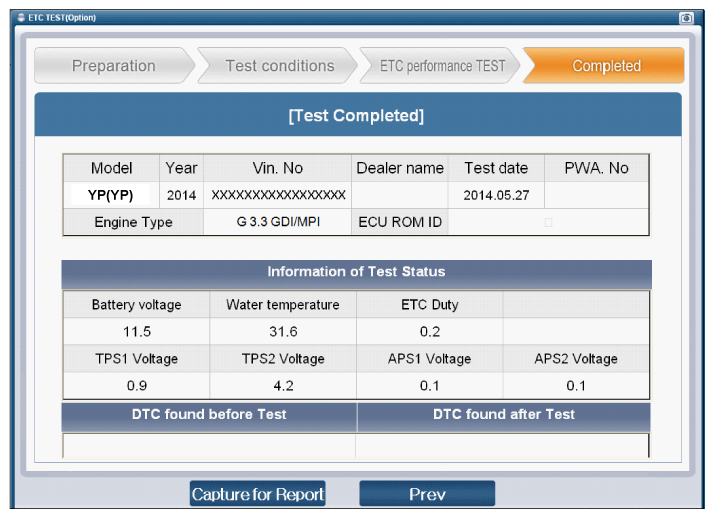

   Fig 5: Scantool Display - ETC Test Completed

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "ETC TEST (Option)" has been finished perfectly, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
