AFLS Setting Procedure

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

When it replace AFLS ECU or H/Lamp Unit or Height sensor, it operates in setting procedure by using Diagnostic equipment following below. When AFLS setting procedure operate, necessarily confirm suspension type and then download parameter.

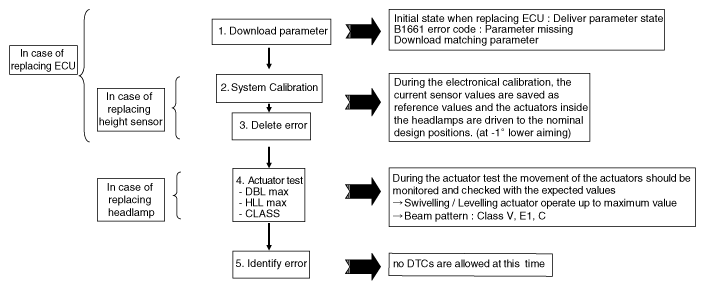

Fig 1: AFLS Setting Procedure

Courtesy of KIA MOTORS AMERICA, INC.

* DTC: Diagnostic Trouble Code

DBL: Dynamic bending Light

HLL: Head Lamp Leveling
