Torque Converter Control Solenoid Valve (TCON_VFS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

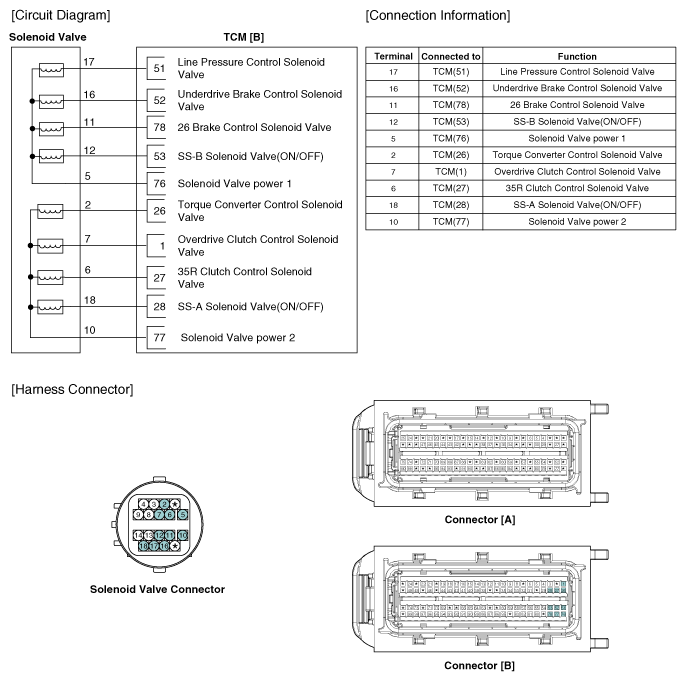

Fig 1: Torque Converter Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
