Monitor GDS Data

■ Cluster Module Variant Coding

1. Verify vehicle options and have VIN code in hand.
2. Perform "CLU Variant Coding " in the "Vehicle S/W Management"  with GDS.
3. Check for DTCs in the system.

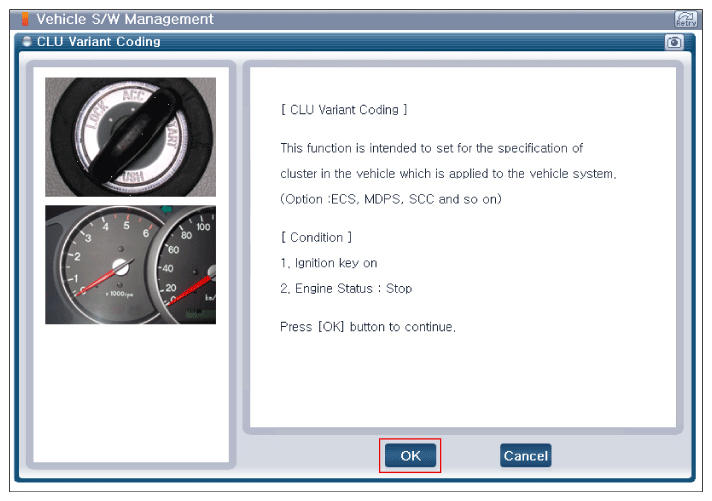

   Fig 1: Screen Display - Cluster Module Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

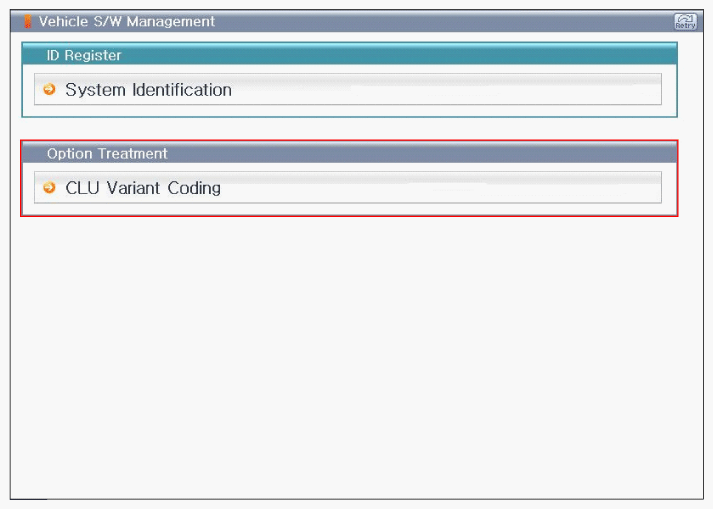

   Fig 2: Screen Display - Cluster Module Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

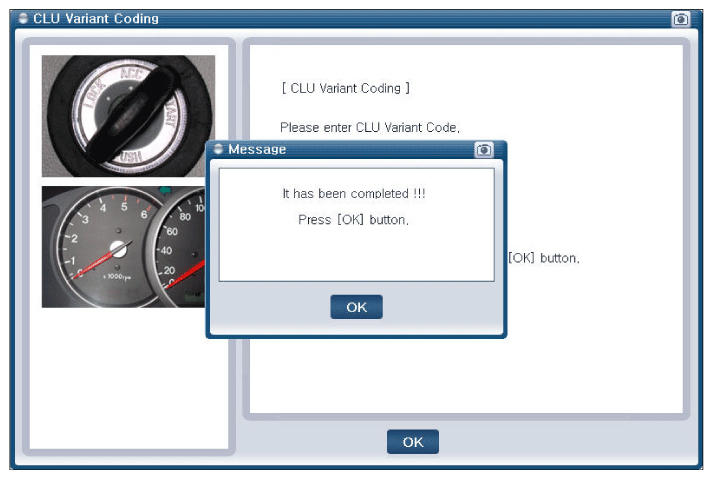

   Fig 3: Screen Display - Cluster Module Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the DTCs stored in the system as a present?

   YES

   • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with GDS again, and then, go to "Verification Of Vehicle Repair " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
