Components And Components Location: Components

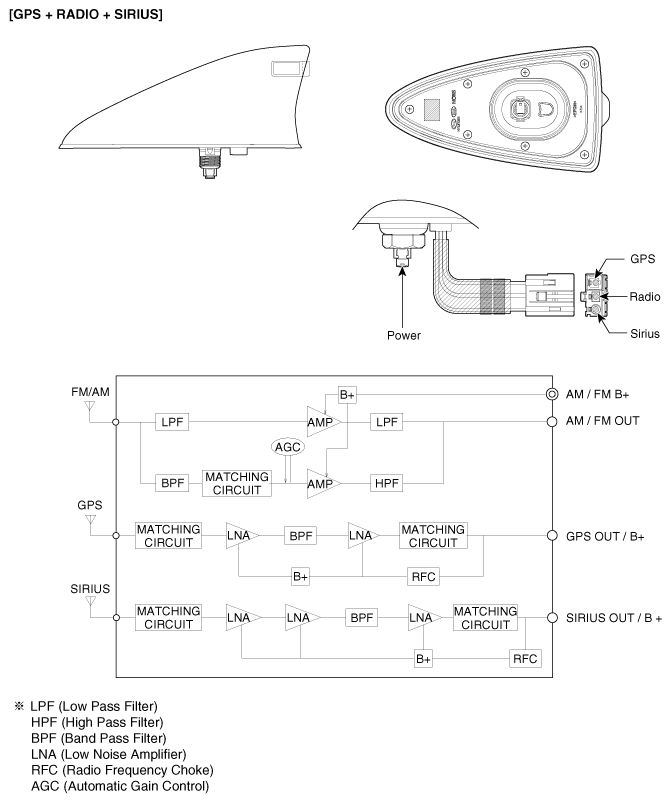

Fig 1: Antenna Circuit Diagram
G11867701Courtesy of KIA MOTORS AMERICA, INC.
