Door Locks
›
Smart Key System
›
Smart Key Unit
›
Schematic Diagrams
Schematic Diagrams

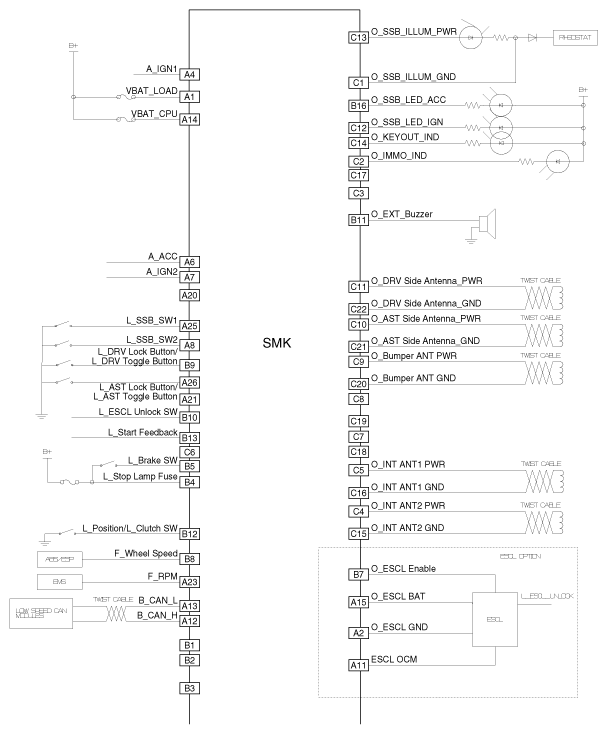

Fig 1: Smart Key Unit Schematic Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Smart Key Unit Schematic Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
