Repair Procedures: Inspection
Inspection Of The Smart Tailgate Using GDS
- Failed area can be promptly detected by inspecting failure code, monitoring input value and forcefully operating actuator and self-diagnosis using the GDS analyzing device.
- Select the vehicle and menu to analyze the Smart Tailgate module.
- Select the "STM" to check the DTC of the power trunk module.

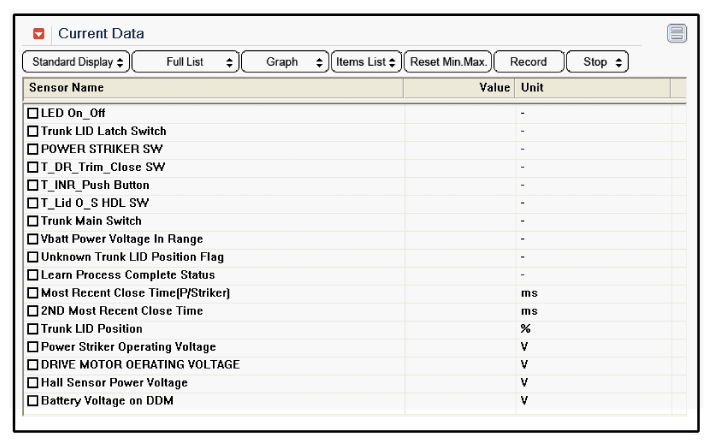

- Select the "Service Data" to see the current status in accordance with the input/output value. Offer status of the each switch and sensor.
