Diagnosis With GDS

It can quickly diagnose defects of power window by communicating with GDS. GDS can operate actuator forcefully, monitor input/output values and self diagnose.
Select model and "BCM".
Select the "SJB" to check.
Select "Current Data" if you wish to check the current data of power window system. This menu provides input/output status of SJB.

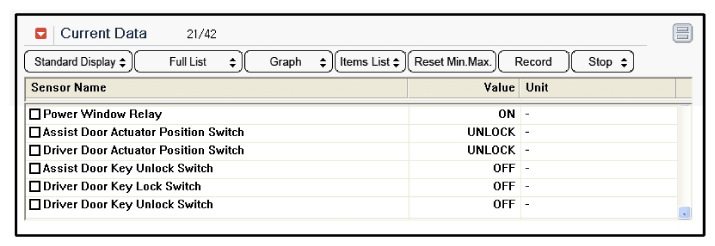

Fig 1: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
If you wish to check the power door lock operation forcefully, select "Actuation test".

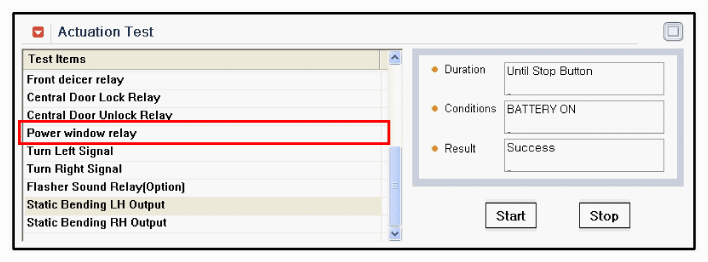

Fig 2: Scantool Display - Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.
