Assist Power Window Switch

[Assist Power Window Module (ADM)]

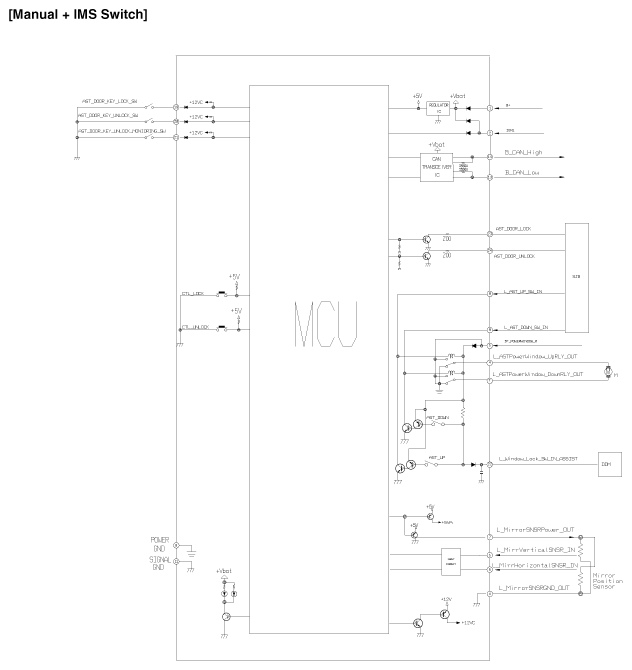

Fig 1: Assist Power Window Module Circuit Diagram (Manual + IMS Switch)

Courtesy of KIA MOTORS AMERICA, INC.

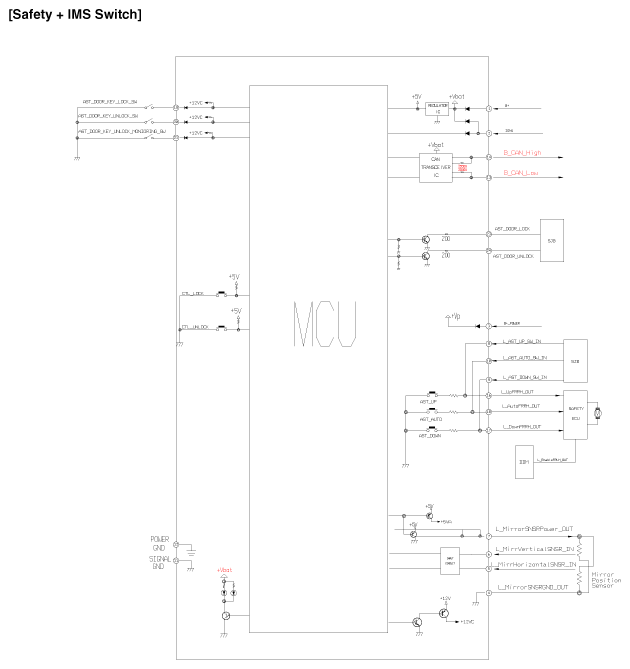

Fig 2: Assist Power Window Module Circuit Diagram (Safety + IMS Switch)

Courtesy of KIA MOTORS AMERICA, INC.

[Assist Power Window Switch]

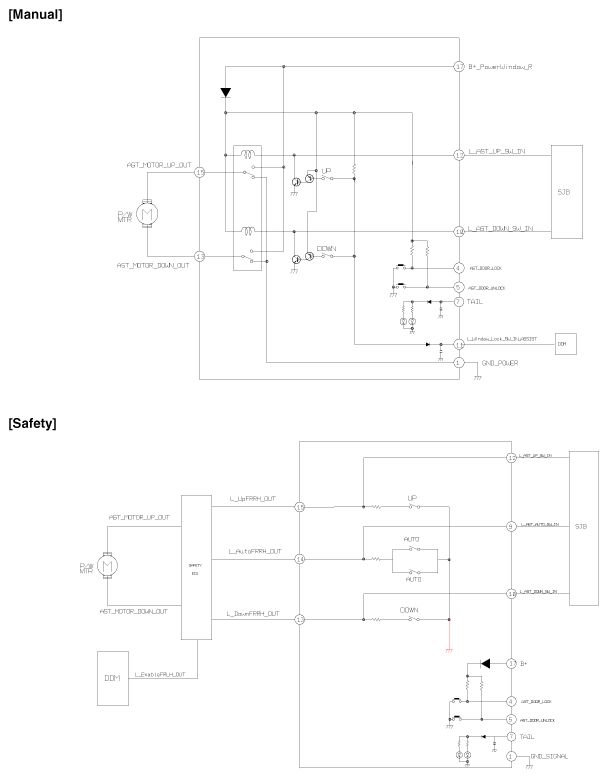

Fig 3: Assist Power Window Switch Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
