Driver Power Window Switch

[Driver Power Window Module]

Fig 1: Driver Power Window Module Circuit Diagram (Auto Down)

Courtesy of KIA MOTORS AMERICA, INC.

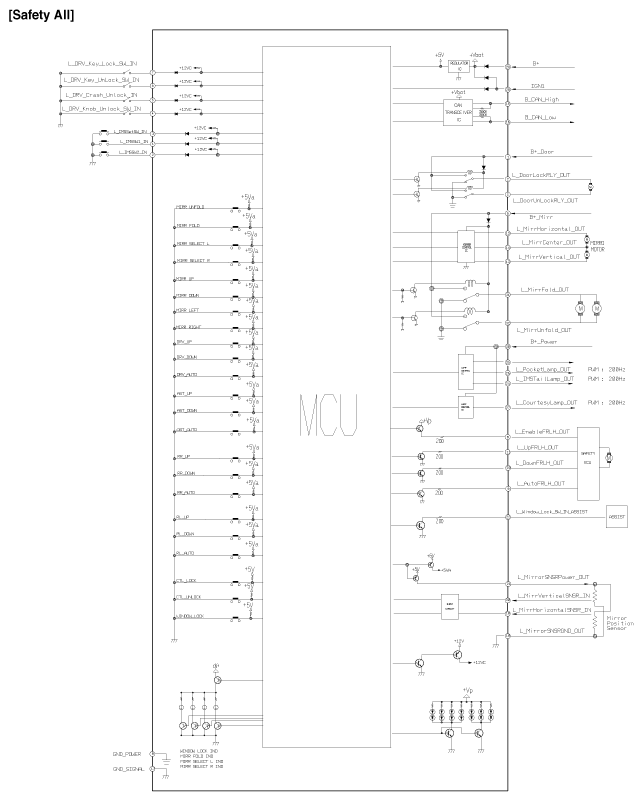

Fig 2: Driver Power Window Module Circuit Diagram (Safety All)

Courtesy of KIA MOTORS AMERICA, INC.

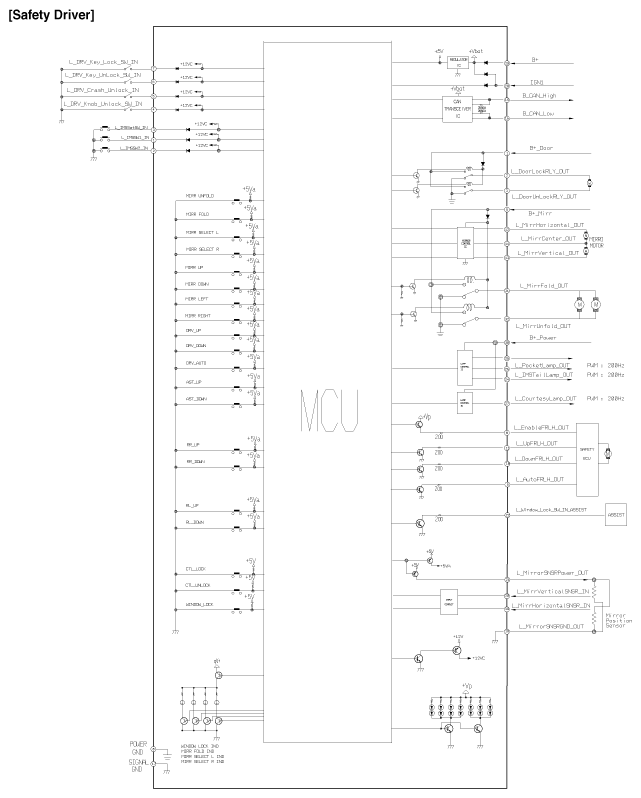

Fig 3: Driver Power Window Module Circuit Diagram (Safety Driver)

Courtesy of KIA MOTORS AMERICA, INC.

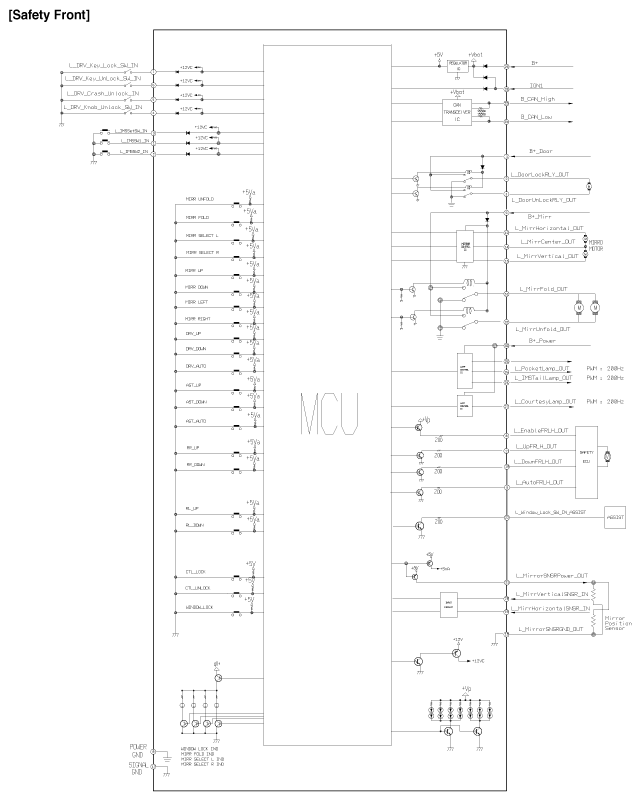

Fig 4: Driver Power Window Module Circuit Diagram (Safety Front)

Courtesy of KIA MOTORS AMERICA, INC.
