Sorento L
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Button Engine Start System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

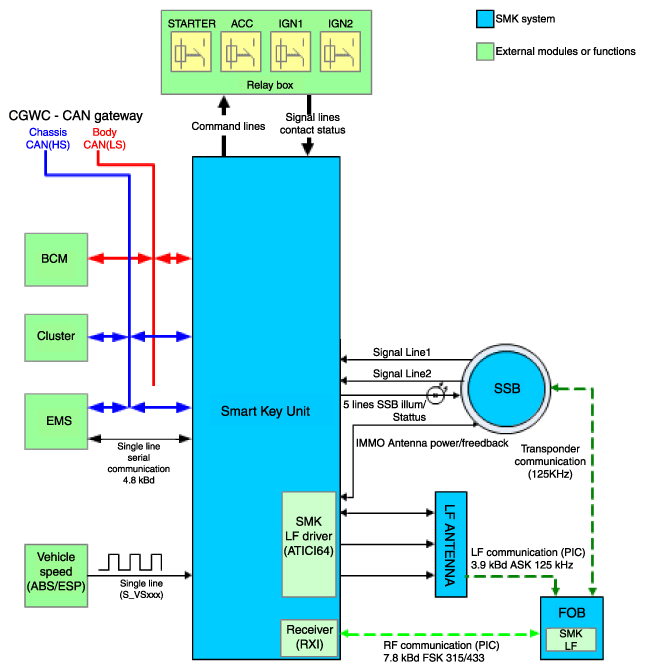

Fig 1: Immobilizer (Smart Key Unit) (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Immobilizer (Smart Key Unit) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
