Description And Operation: Operation

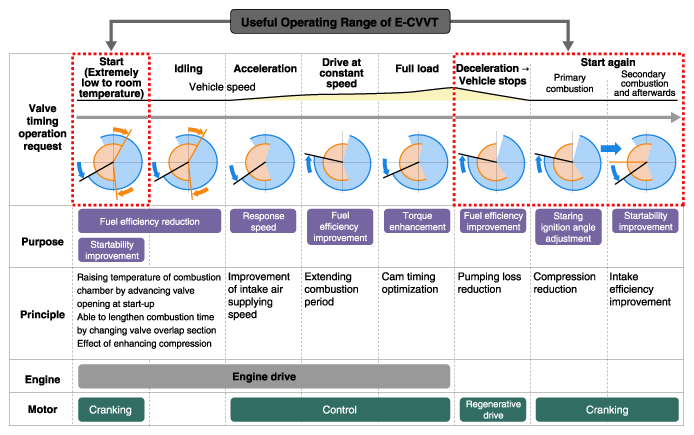

Fig 1: E-CVVT System Operation Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
