Engine Control System - 2.4L
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

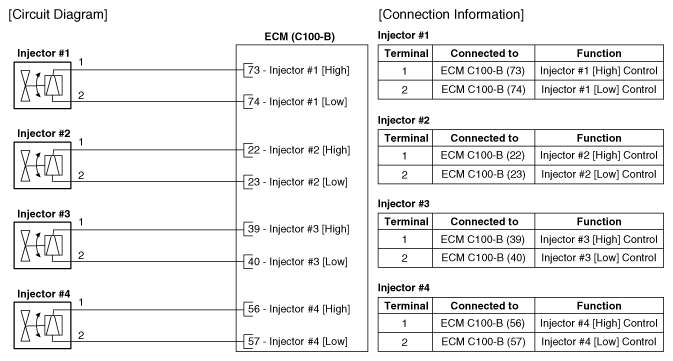

Fig 1: GDI Injector Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
