Engine Control System Diagnosis - 2.4L (2 Of 3)
›
DTC P0620-00: Alternator Control Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

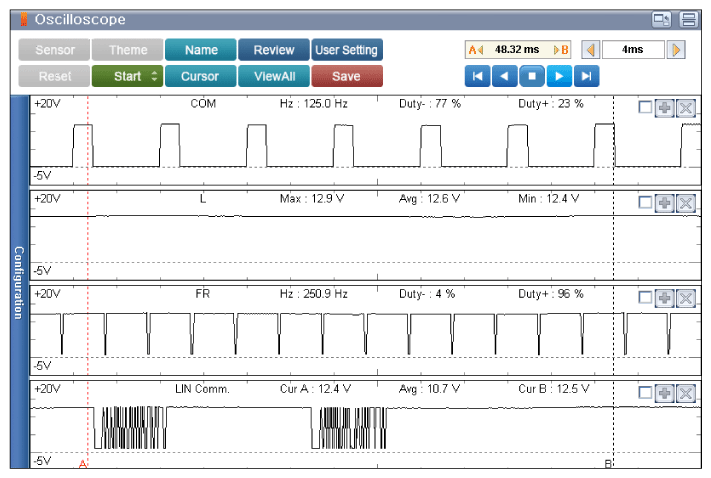

Fig 1: Scantool Display - Alternator Signal Waveform At Idle And No Electrical Load
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Scantool Display - Alternator Signal Waveform At Idle And Electrical Load
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
