Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

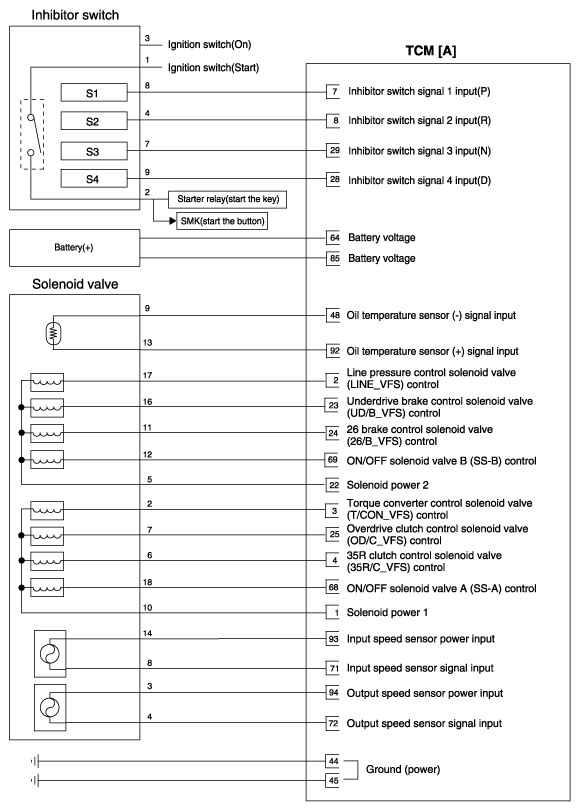

Fig 1: Transaxle Control Module Circuit Diagram (1 Of 2)
G11862430Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Transaxle Control Module Circuit Diagram (2 Of 2)
G11862431Courtesy of KIA MOTORS AMERICA, INC.
