Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

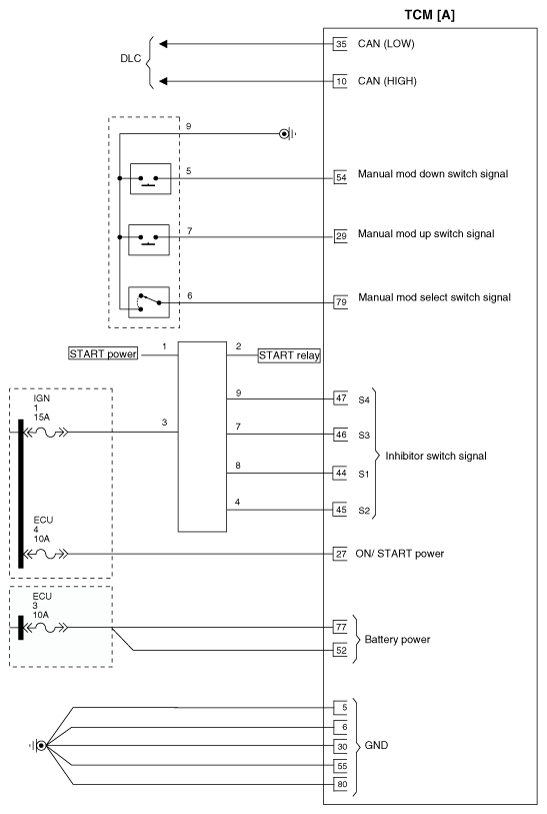

Fig 1: Inhibitor Switch Circuit Diagram (1 Of 2)
G11872332Courtesy of KIA MOTORS AMERICA, INC.

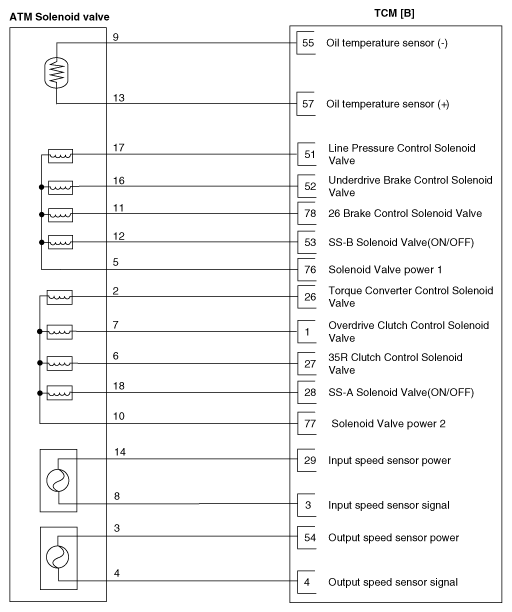

Fig 2: Inhibitor Switch Circuit Diagram (2 Of 2)
G11872333Courtesy of KIA MOTORS AMERICA, INC.
