Components And Components Location: Components

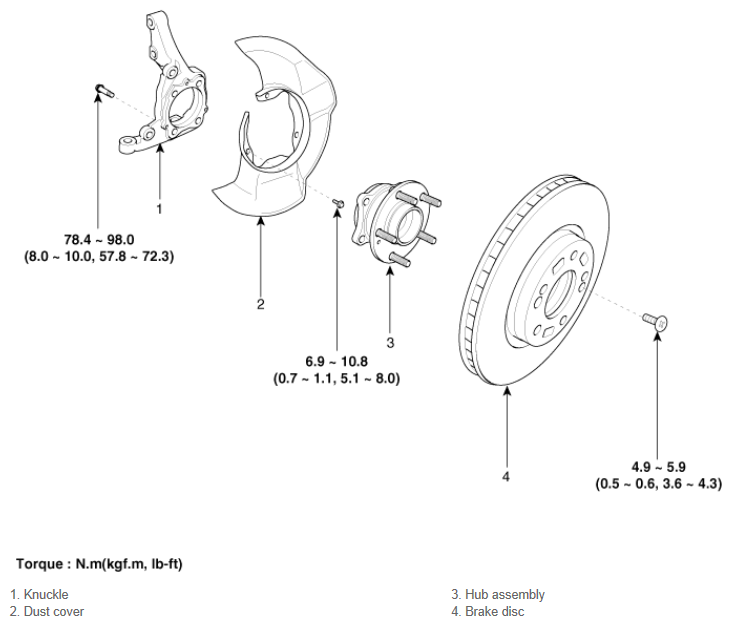

Fig 1: Front Hub Knuckle Tone Wheel Components With Torque Specification
G11863692Courtesy of KIA MOTORS AMERICA, INC.
