Automatic Transaxle Control System - 2.4L
›
Components And Components Location
›
Components
Components And Components Location: Components

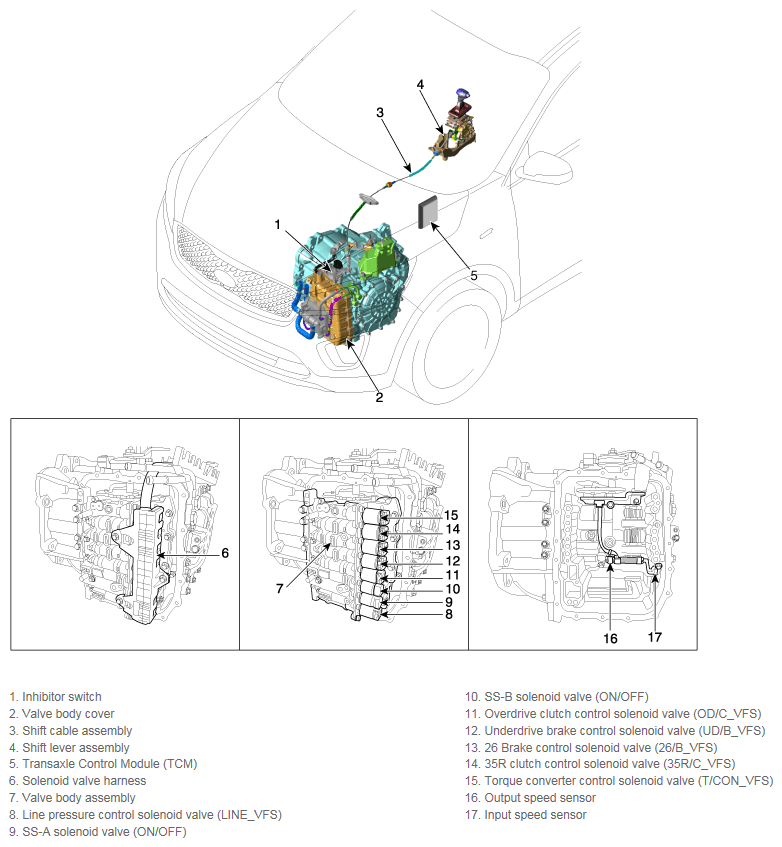

Fig 1: Automatic Transaxle Control System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
